Scoring systems

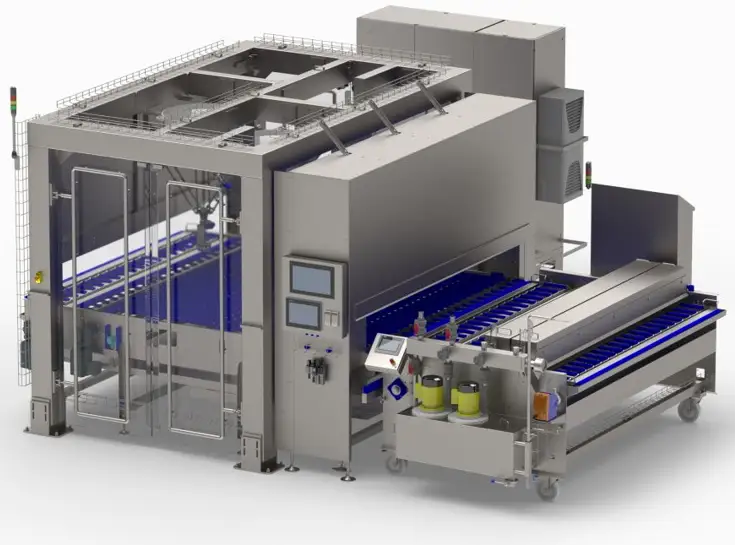

Robot scoring system
The robotic scoring system is a great solution for bakeries that want to keep the quality and consistency of their products high. The robot can be configured to meet just about any requirement: different scoring patterns, different types of bread and without having to rely on accurate positioning every time.
- For cutting bread, rolls, baguettes, ciabatta, pretzel products, glutenfree products
The robotic cutting system for a high industrial standard for the production of high quantities while maintaining high quality standards. Using image processing, each cut can be set with pinpoint accuracy, even if the position of the products varies.
Products are positioned exposed, on peelboards or trays, detected with a 3D laser sensor and the position data of each individual product is transmitted to the robots.
The robot then cuts the products according to the selected recipe.
The machine can be adapted to the space available.
Up to eight robots can be installed in one system.
Circular cut
Cross cut
Single cut
Triangular cut
Half circle cut
Square cut
Star cut
Triple parallel cut
Diamond cut
S-cut
Leaf cut
Polka
Triple cross cut
Baguttes multiple cuts
- 3D image processing
- User software for recipe creation (no programming knowledge necessary)
- Remote maintenance for support purposes via VPN (possible in connection with a webcam)
- Contour-following cuts
- Dynamic adjustment of the cutting length
- Cutting of seeded products possible
- Ultrasonic
- Water jet (also possible in multiple tool design)
Width from up to | 600 – 4000 mm |
| Capacity per hour (depending on scoring pattern) | Up to 7500 picks per hour |
| Robot type | Six-axis robot |

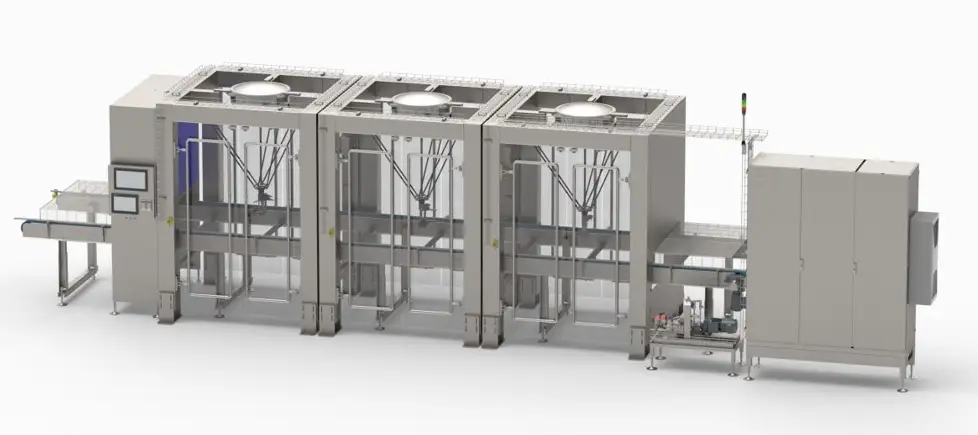

Pretzel products cutting with robot
Our fully automated system for cutting pretzel products. Use of a 3D image processing system to detect the positioning of the products. Extra wide version possible for large production lines.
- For cutting pretzels, pretzel sticks, pretzel rolls, pretzel wreaths and much more.
Products are exposed on caustic-resistant plastic link belts with a 3D laser sensor and the position data of each individual product is transmitted to the robots.
The robot then cuts the products according to the selected recipe.
The machine can be adapted to the space available.
Up to eight robots can be installed in one system.
It can be combined with one of our scoring systems.
Cross cut
Single cut
Triangular cut
Diamond cut
Star cut
Triple parallel cut
Single cut pretzel stick
Multiple cut pretzel stick
Multiple cut pretzel stick
Triple cross cut pretzel stick
- 3D image processing
- User software for recipe creation (no programming knowledge necessary)
- Remote maintenance for support purposes via VPN (possible in connection with a webcam)
- Contour-following cuts
- Cutting of seeded products possible
- Ultrasonic Scoring (also available as Multi-Tool with two or three knives)
| Width from up to | 600 – 4000 mm |
| Output per hour (depending on cutting pattern) | Up to 10,000 picks per hour with Delta robot Up to 7,500 picks per hour with six-axis |
| Robot type | Delta robot or six-axis robot |
Pretzel products Cutting with portal
The pretzel cutting station is an economic solution for cutting pretzels for your existing lines. It ensures a clean cut, minimises dough sticking to the blades and offers different cutting patterns.
- For cutting pretzels, pretzel sticks, pretzel rolls, pretzel rings and much more.
Our cutting station offers the advantages of ultrasonic technology in a small and compact solution. Pretzel products are detected by means of a photoelectric sensor and then cut by pneumatic conveyors.
Retrofittable even without its own conveyor system, the station can be flexibly moved in and out.
Recipe control and system operation are simply set up via a touch display.
Cross cut
Single cut
Single cut pretzel stick
Multiple cut pretzel stick
Multiple cut pretzel stick
Triple cross cut pretzel stick
- Remote maintenance for support purposes via VPN (possible in connection with a webcam)
- Cutting of sprinkled products possible
- Ultrasonic
| Width from up to | 600 -1200 mm |
| Output per hour (depending on cutting pattern) | Up to. 10,000 cuts per hour |
Confectionery & Cake Cutting
The cake and confectionery cutting machine is a precise and reliable machine for cutting confectionery and/or cakes. Flexible cutting patterns are possible through the use of robots.
- For cutting confectionery & cake Cutting
With precise ultrasonic technology, we offer the solution for your confectionery and/or cake production.
To prevent contamination, all systems are equipped with automatic cleaning stations.
Ultrasonic technology also minimises waste from cutting.
Thanks to robotics, cutting patterns can be produced easily. If necessary, the cut pieces can be pulled apart immediately.
Rectangles
Round
Cube
- Remote maintenance for support purposes via VPN (possible in connection with a webcam)
- Automatic cleaning station
- Simple recipe management via touch display
- Holding devices for round or sheet cakes
- Optional: discharge of edge cuttings
- Ultrasonic (also possible in multiple-tool design)
Technical data | 600 -1600 mm |
